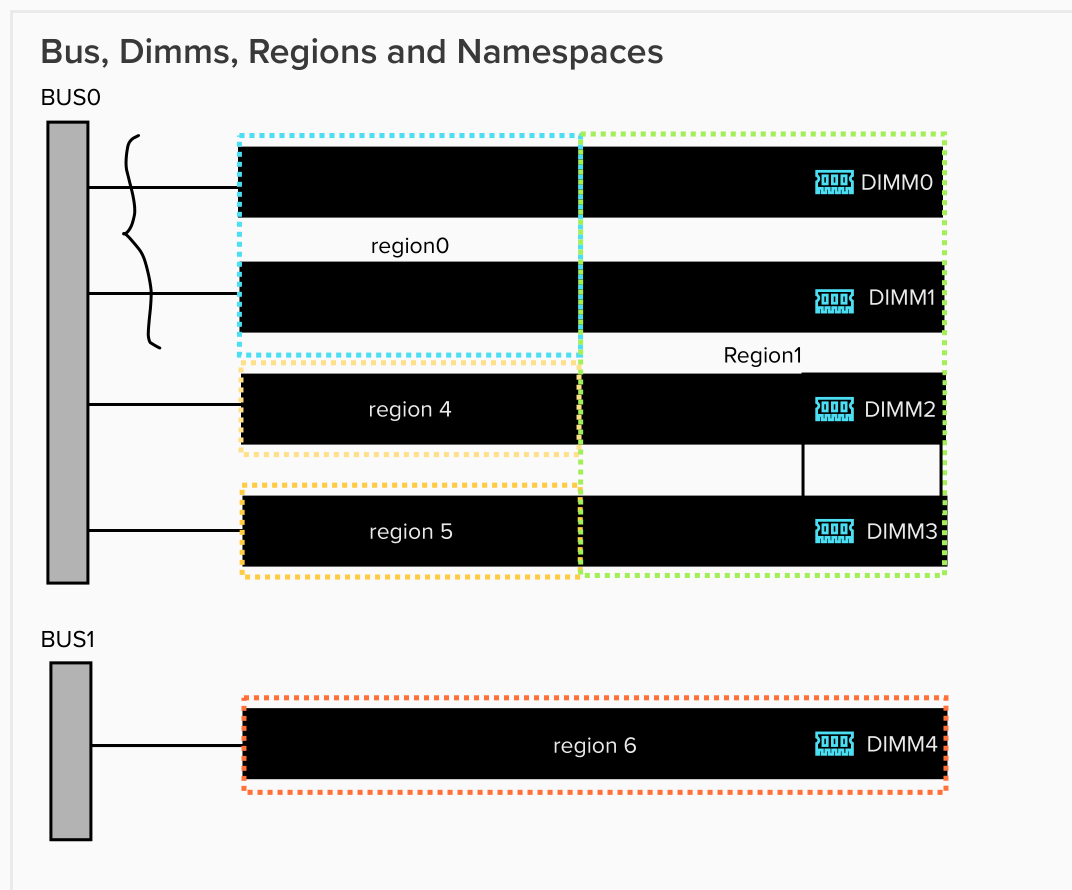

DIMM and region layout required for ndctl test

Bus 0

DIMM	id	handle	phys_id
0	-	0x0	0x0
1	-	0x1	0x1
2	-	0x100	0x2
3	-	0x101	0x3
41	-	0x1000

Bus 1

DIMM	id	handle	phys_id
5	-	0x10000	0x0
6	-	0x10001	0x0

Mappings

Region 0

• size: 32M
• Namespace type: PMEM

• mapping:

  DIMM	start	size	position
  0	0	16M	0
  1	0	16M	1

Region 1

• size: 32M
• Namespace type: PMEM

• mapping:

  DIMM	start	size	position
  0	16M	16M	0
  1	16M	16M	1
  2	16M	16M	2
  3	16M	16M	3

Region 2

• size: 32M
• Namespace type: BLK

• mapping:

  DIMM	start	size	position
  0	0	32M	0

Region 3

• size: 32M
• Namespace type: BLK

• mapping:

  DIMM	start	size	position
  1	0	32M	0

Region 4

• size: 32M
• Namespace type: BLK

• mapping:

  DIMM	start	size	position
  2	0	32M	0

Region 5

• size: 32M
• Namespace type: BLK

• mapping:

  DIMM	start	size	position
  3	0	32M	0

Region 6

• size: 32M
• Namespace type: IO

• mapping:

  DIMM	start	size	position
  4	0	32M	0

Region 7

• size: 4M
• Namespace type: IO

• mapping:

  DIMM	start	size	position
  5	0	0	0

---

1. This is a hotpluggable DIMM ↩
